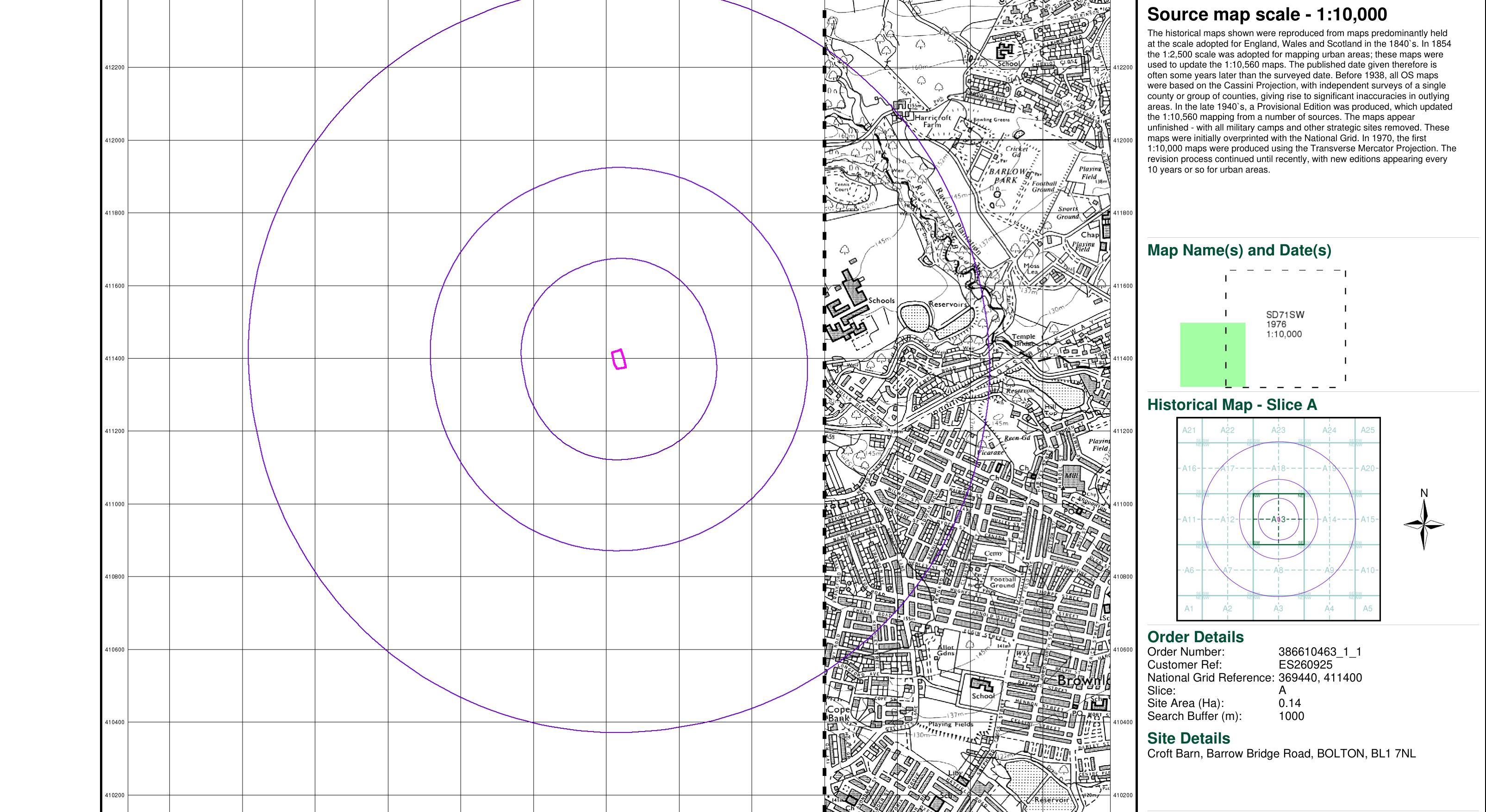

Review automatic site boundary · page 27

1976 · 1:10,000 · Barrow Bridge-part-2.pdf

Back to pages

Boundary confidence 93.2%

Outline Closed magenta polygon

Distance calibration Buffer rings

Resolution 1.2407 m/pixel

Matched rings 250 / 500 / 1000 m

Site boundary Environmental detection Map panel shown to 2,398 of 3,210 pixels

Distances use the nearest point of the approved boundary. Buffer-ring calibration is retained when the page was automatically registered.

Scale denominator

1 :

Detected source scale: 1:10,000 Rendered DPI Keep this at 200 unless the worker render setting changed. Map rotation clockwise from north

Use 0° where north is at the top of the map.

Active resolution 1.2407 metres per pixel Validated from supplied buffer rings.

Boundary points 0 The polygon closes automatically when saved.

This approves the page registration but does not approve individual land uses for the final Word table.
